Control the dimensions of DropDown List of ComboBox [Windows]

[RASHAD]

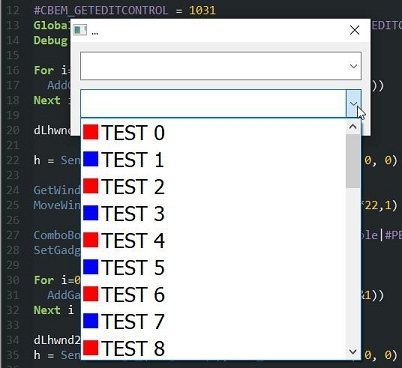

Hi

Code: Select all

Dim iconhandle(2)
iconhandle(0)=CreateImage(0,20,20,32,#Red)
iconhandle(1)=CreateImage(1,20,20,32,#Blue)
iconhandle(2)=CreateImage(2,20,20,32,#Green)

LoadFont(0,"Tahoma",16)

OpenWindow(0,0,0,320,100,"...",#PB_Window_SystemMenu|#PB_Window_ScreenCentered)
ComboBoxGadget(0,10,10,300,30,#PB_ComboBox_Editable|#PB_ComboBox_Image)
SetGadgetFont(0,FontID(0))

#CBEM_GETEDITCONTROL = 1031
Global hEdit = SendMessage_(GadgetID(0), #CBEM_GETEDITCONTROL, 0, 0)
Debug hEdit

For i=0 To 20
  AddGadgetItem(0,-1,"TEST "+Str(i),iconhandle(i&1))
Next i

dLhwnd = FindWindow_("ComboLBox",0)

h = SendMessage_(GadgetID(0), #CB_GETITEMHEIGHT, 0, 0)

GetWindowRect_(dLhwnd,r.RECT)
MoveWindow_(dLhwnd,r\left,r\top,r\right-r\left,h*22,1)

ComboBoxGadget(1,10,50,300,30,#PB_ComboBox_Editable|#PB_ComboBox_Image)
SetGadgetFont(1,FontID(0))

For i=0 To 30
  AddGadgetItem(1,-1,"TEST "+Str(i),iconhandle(i&1))
Next i

dLhwnd2 = FindWindow_("ComboLBox",0)
h = SendMessage_(GadgetID(1), #CB_GETITEMHEIGHT, 0, 0)

GetWindowRect_(dLhwnd2,r2.RECT)
MoveWindow_(dLhwnd2,r2\left,r2\top,r2\right-r2\left,h*32,1)
;SetActiveGadget(0)


Repeat
  EventID.l = WaitWindowEvent()
  Select EventID

    Case #PB_Event_CloseWindow
      End

    Case #PB_Event_Gadget
      Select EventGadget()
        Case 0

      EndSelect
  EndSelect
ForEver

[hoangdiemtinh]

Thank man.
I will apply your code to my upcoming program.

[boddhi]

Hi RASHAD,

I don't see any difference... normal?
(Win 10 x64 - PB 6.10 x64 - DPI 125%)

[RASHAD]

Hi boddhi
Just checked it with :
1- Windows 11 x64 - PB 6.10 x64 125% DPI
2- Windows 10 x64 (VM) - PB 6.10 x64 125% DPI
Both works as expected
Make sure that the handle of the DropDown list is OK and report
Thanks for reporting

And thanks for hoangdiemtinh too

[boddhi]

No modification of the source except Debugs added:

hEdit : 2823766
dLhwnd : 35526464
h : 36
dLhwnd2 : 35526464
h : 36

It seems that the two combo get the same handle...

[RASHAD]

That is strange
See if the next snippet do it right

Code: Select all

Dim iconhandle(2)
iconhandle(0)=CreateImage(0,20,20,32,#Red)
iconhandle(1)=CreateImage(1,20,20,32,#Blue)
iconhandle(2)=CreateImage(2,20,20,32,#Green)

LoadFont(0,"Tahoma",16)

OpenWindow(0,0,0,320,100,"...",#PB_Window_SystemMenu|#PB_Window_ScreenCentered)
ComboBoxGadget(0,10,10,300,30,#PB_ComboBox_Editable|#PB_ComboBox_Image)
SetGadgetFont(0,FontID(0))

For i=0 To 20
  AddGadgetItem(0,-1,"TEST "+Str(i),iconhandle(i&1))
Next i

ComboBoxGadget(1,10,50,300,30,#PB_ComboBox_Editable|#PB_ComboBox_Image)
SetGadgetFont(1,FontID(0))

For i=0 To 30
  AddGadgetItem(1,-1,"TEST "+Str(i),iconhandle(i&1))
Next i

Repeat
  EventID.l = WaitWindowEvent()
  Select EventID

    Case #PB_Event_CloseWindow
      End

    Case #PB_Event_Gadget
      Select EventGadget()
        Case 0
          dLhwnd = FindWindow_(@"ComboLBox",0)
          Debug dlhwnd
          h = SendMessage_(GadgetID(0), #CB_GETITEMHEIGHT, 0, 0)
          GetWindowRect_(dLhwnd,r.RECT)
          MoveWindow_(dLhwnd,r\left,r\top,r\right-r\left,h*(CountGadgetItems(0)+1),1)

        Case 1
          dLhwnd = FindWindow_(@"ComboLBox",0)
          h = SendMessage_(GadgetID(1), #CB_GETITEMHEIGHT, 0, 0)
          GetWindowRect_(dLhwnd,r.RECT)
          MoveWindow_(dLhwnd,r\left,0,r\right-r\left,h*(CountGadgetItems(1)+1),1)

      EndSelect
  EndSelect
ForEver

[boddhi]

Hi,

See if the next snippet do it right

It seems to be the expected behaviour but...

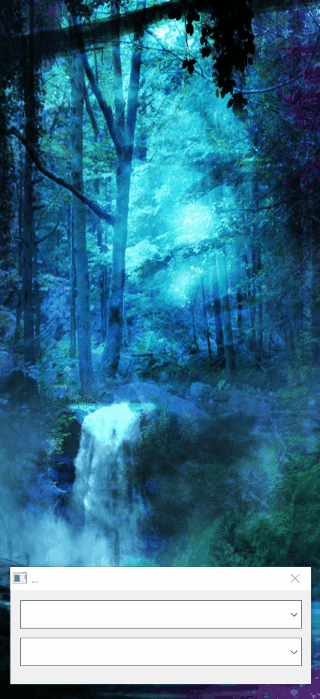

as you can see, the first combo's dropdownlist (and probably for the second too if it had fewer items) is not always positioned at the same position, depending on whether it is the first click, the second click or whether the second combox was clicked before...

[RASHAD]

ComboBox with Image is a special class by PB
Next is my last run
Wish me luck

Code: Select all

Dim cblist(1,1)
Dim iconhandle(2)

iconhandle(0)=CreateImage(0,20,20,32,#Red)
iconhandle(1)=CreateImage(1,20,20,32,#Blue)
iconhandle(2)=CreateImage(2,20,20,32,#Green)

LoadFont(0,"Tahoma",16)

OpenWindow(0,0,0,320,100,"...",#PB_Window_SystemMenu|#PB_Window_ScreenCentered)
ComboBoxGadget(0,10,10,300,30,#PB_ComboBox_Editable|#PB_ComboBox_Image)
SetGadgetFont(0,FontID(0))
dLhwnd = FindWindow_("ComboLBox",0)
h = SendMessage_(GadgetID(0), #CB_GETITEMHEIGHT, 0, 0)
cblist(0,0) = dLhwnd
cblist(0,1) = h

For i=0 To 20
  AddGadgetItem(0,-1,"TEST "+Str(i),iconhandle(i&1))
Next i

ComboBoxGadget(1,10,50,300,30,#PB_ComboBox_Editable|#PB_ComboBox_Image)
SetGadgetFont(1,FontID(0))
dLhwnd2 = FindWindow_("ComboLBox",0)
h = SendMessage_(GadgetID(1), #CB_GETITEMHEIGHT, 0, 0)
cblist(1,0) = dLhwnd2
cblist(1,1) = h

For i=0 To 30
  AddGadgetItem(1,-1,"TEST "+Str(i),iconhandle(i&1))
Next i

Repeat
  EventID.l = WaitWindowEvent()
  Select EventID

    Case #PB_Event_CloseWindow
      End

    Case #PB_Event_Gadget
      Select EventGadget()
        Case 0
          GetWindowRect_(cblist(0,0),r.RECT)
          MoveWindow_(cblist(0,0),r\left,r\top,r\right-r\left,cblist(0,1)*22,1)

        Case 1
          GetWindowRect_(cblist(1,0),r.RECT)
          MoveWindow_(cblist(1,0),r\left,0,r\right-r\left,cblist(1,1)*32,1)

      EndSelect
  EndSelect
ForEver

[boddhi]

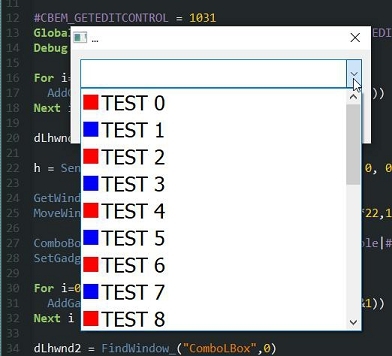

Unfortunately, same result as your first code!
Thanks for your tries.

It was to move the schmilblick!
