TreeGadget() & Ugly black & red checkered border

[Thunder93]

Working with TreeGadget() under Windows 10 w/ Latest PB stable release.

The selected item in the list gets an ugly black & red checkered border. If I switch to another screen and come back to it, all is normal, and I can select around and It'll be good.

[acreis]

I coudnt reproduce the issue here.

[Thunder93]

Nothing fancy for code, simply using the PB Help TreeGadget() sample code. Using default Windows 10 Theme.

[acreis]

Great!

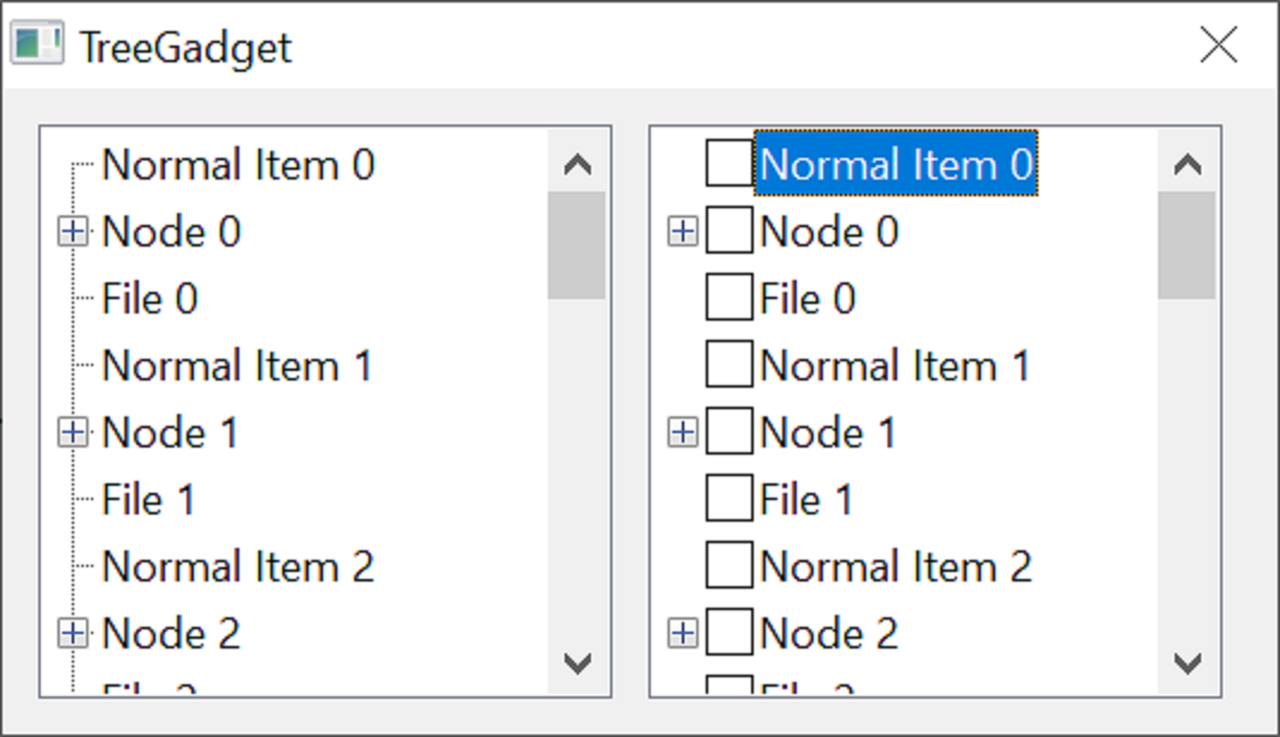

Black and dark yellow checkered border here!

[Thunder93]

lol

[bbanelli]

Obviously Windows 10 theme driven feature. When you return focus to a window and pres "Ctrl", same frame/border appears.

Code: Select all

If OpenWindow(0, 0, 0, 355, 180, "TreeGadget", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
  tree = CreateWindowEx_(#Null, #WC_TREEVIEW, "Tree View", #WS_VISIBLE|#WS_BORDER|#WS_CHILDWINDOW|#TVS_HASLINES,10, 10, 160, 160, WindowID(0), #Null, GetModuleHandle_(0), #Null)
  TreeGadget(1, 180, 10, 160, 160, #PB_Tree_NoLines)
  For i = 1 To 5
    NodeText.s = "Item " + Str(i)
    tvi.TV_INSERTSTRUCT\hParent = hItemParent
    tvi.TV_INSERTSTRUCT\hInsertAfter = #TVI_LAST
    tvi.TV_INSERTSTRUCT\Item\Mask = #TVIF_TEXT
    tvi.TV_INSERTSTRUCT\Item\pszText = @NodeText
    tvi.TV_INSERTSTRUCT\Item\cchTextMax = Len(NodeText)
    SendMessage_(tree, #TVM_INSERTITEM, #Null, @tvi)
    AddGadgetItem (1, -1, "Item " + Str(i), #Null, #Null)
  Next
  Repeat : Until WaitWindowEvent() = #PB_Event_CloseWindow
EndIf

[Thunder93]

I've noticed the reappearance earlier when I was pressing ALT.

[Thunder93]

I wonder why other applications using the same class doesn't suffer from this then. If it is truly new style in Windows 10 ... which I find it really difficult to believe. Windows Device Manager and other apps using same class .. doesn't suffer from this anomaly.

[bbanelli]

Well, I've called native WinAPI and same thing happens.

Funny, though, if you try access "Class" tab in WinSpy++ with any PB application in Windows 10 (including PB IDE), it crushes spied application immediately.

[RASHAD]

No,no black border with Win API
Only with PB

[RASHAD]

Strange behavior
If the TreeGadget followed by even a dummy ButtonGadget it looks fine

Code: Select all

  If OpenWindow(0, 0, 0, 355, 180, "TreeGadget", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
    TreeGadget(0, 10, 10, 160, 160)                                         ; TreeGadget standard
    TreeGadget(1, 180, 10, 160, 160, #PB_Tree_CheckBoxes | #PB_Tree_NoLines)  ; TreeGadget with Checkboxes + NoLines
    For ID = 0 To 1
      For a = 0 To 10
        AddGadgetItem (ID, -1, "Normal Item "+Str(a), 0, 0) ; if you want to add an image, use
        AddGadgetItem (ID, -1, "Node "+Str(a), 0, 0)        ; ImageID(x) as 4th parameter
        AddGadgetItem(ID, -1, "Sub-Item 1", 0, 1)    ; These are on the 1st sublevel
        AddGadgetItem(ID, -1, "Sub-Item 2", 0, 1)
        AddGadgetItem(ID, -1, "Sub-Item 3", 0, 1)
        AddGadgetItem(ID, -1, "Sub-Item 4", 0, 1)
        AddGadgetItem (ID, -1, "File "+Str(a), 0, 0) ; sublevel 0 again
      Next
    Next
  ButtonGadget(2,0,0,0,0,"Test 2")
    Repeat : Until WaitWindowEvent() = #PB_Event_CloseWindow
  EndIf

[Thunder93]

Looks fine until you press certain keys.

[Thunder93]

the filling of the backcolor of the selected control is incomplete. Also ListViewGadget also effected, however with very slight difference.

[Fred]

Seems to work as expected here, can anybody else confirm ?

[Thunder93]

Using the TreeGadget() example code with PB 6.02LTS under Windows 10 22H2 w/Latest patches, I'm still experiencing the same thing.
