Modify or create frame around explorer window

[Kwai chang caine]

Hello at all

I open several explorer windows "C:\" and "D:\" and "C:\Program files\"
And i want spot one of this explorer window, for example :
- Change window background color
- Change titlebar background color
- Change icon in TileBar
- Create a square around it
etc ...

For the moment, I just know how to change the title
But it's not realy visible i prefer something with color for good see the window selected

Code: Select all

Hwnd = FindWindow_("CabinetWClass", "C:\")
Debug Hwnd

; Change title
Title$ = Space(256)
GetWindowText_(Hwnd, Title$, 256)
Title$ = Title$ + " ==> MASTER"
SetWindowText_(Hwnd, Title$)

; Change background color (NOT WORKS => Nothing happening)
hBrush = CreateSolidBrush_(RGB(0, 255, 255))
SetClassLong_(Hwnd, #GCL_HBRBACKGROUND, hBrush)
InvalidateRect_(Hwnd, #Null, #True)
;DeleteObject_(hBrush)

; Change icone window (NOT WORKS => Icon disapear, new icon not show)
If LoadImage(0, #PB_Compiler_Home + "..\Examples\#Commun\ico2.ico")
 SendMessage_(hWnd,#WM_SETICON,0, ImageID(0))
EndIf

Have you a simple code, to spot one of my windows ?

I wish to you all a good day

[Kwai chang caine]

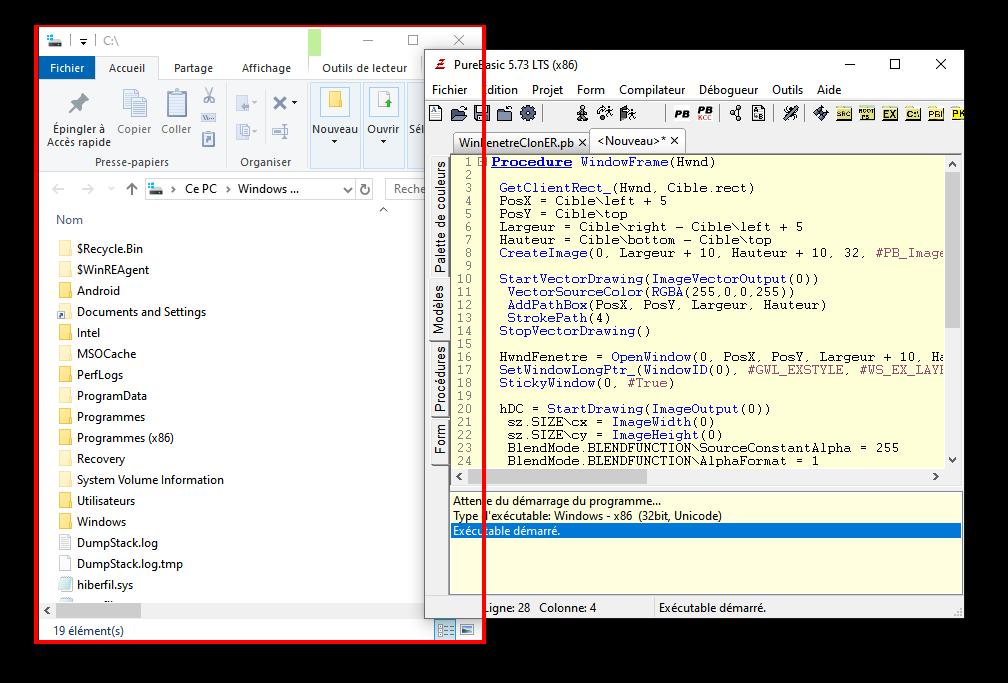

Thanks to a Netmaestro code (Transparency window)
https://www.purebasic.fr/english/viewto ... 41#p551441
I nearly have what i want to do, but the problem is with StickyWindow() other windows can pass between my cible window "C:\" and my FRAM



Have you a way for linking my window cible and my frame, or perhaps for replace the stickywindow() send to the frame a style of ZORDER only one level less or more

Code: Select all

Procedure WindowFrame(Hwnd)

 GetClientRect_(Hwnd, Cible.rect)
 PosX = Cible\left + 5
 PosY = Cible\top
 Largeur = Cible\right - Cible\left + 5
 Hauteur = Cible\bottom - Cible\top
 CreateImage(0, Largeur + 10, Hauteur + 10, 32, #PB_Image_Transparent)

 StartVectorDrawing(ImageVectorOutput(0))
  VectorSourceColor(RGBA(255,0,0,255))
  AddPathBox(PosX, PosY, Largeur, Hauteur)
  StrokePath(4)
 StopVectorDrawing()

 HwndFenetre = OpenWindow(0, PosX, PosY, Largeur + 10, Hauteur + 10, "Gdiplus Drawing", #PB_Window_ScreenCentered|#PB_Window_BorderLess)
 SetWindowLongPtr_(WindowID(0), #GWL_EXSTYLE, #WS_EX_LAYERED)
 StickyWindow(0, #True)

 hDC = StartDrawing(ImageOutput(0))
  sz.SIZE\cx = ImageWidth(0)
  sz.SIZE\cy = ImageHeight(0)
  BlendMode.BLENDFUNCTION\SourceConstantAlpha = 255
  BlendMode.BLENDFUNCTION\AlphaFormat = 1
  UpdateLayeredWindow_(WindowID(0),0,0,@sz,hDC,@ContextOffset.POINT,0,@BlendMode,2)
 StopDrawing()

 ProcedureReturn HwndFenetre

EndProcedure

Hwnd = FindWindow_("CabinetWClass", "C:\")
HwndFrame = WindowFrame(Hwnd)

Repeat :

 WindowEvent()
 Delay(1)
 GetWindowRect_(Hwnd, Cible.rect)
 ResizeWindow(0, Cible\left, Cible\top, Cible\right - Cible\left, Cible\bottom - Cible\top)

Until GetAsyncKeyState_(#VK_ESCAPE)

[firace]

Not sure if this responds to your needs, but here's a different, very simple solution, using the standard FlashWindow() API:

Code: Select all

OpenWindow(0, 100, 100, 140, 80, "Test")

ExplorerWindowTitle$ = "OS (C:)"    ;  <<<--- change this to the title of your explorer window

hWnd=FindWindow_(0, @ExplorerWindowTitle$)

FlashWindow_(hWnd, 3)


Repeat : Until WaitWindowEvent() = #PB_Event_CloseWindow

[Kwai chang caine]

Hello FIRACE

Thanks for your precious help, very happy to talk to you since all this long time

Yeeess !!!
it's not really that i search to do, but you have a really good idea
I have forgoten this API, who not use really often, i must to say

I have test your code and have a strange behaviour, my window flash only one time
After search, i found the second parameter is not the number of flash, but just a boolean for flash or not

Thanks to you now and your servant (The dream team )...my window can be flashed

Code: Select all

OpenWindow(0, 100, 100, 140, 80, "Test")

ExplorerWindowTitle$ = "OS (C:)"    ;  <<<--- change this to the title of your explorer window

hWnd=FindWindow_(0, @ExplorerWindowTitle$)

For i = 1 To 20
 FlashWindow_(hWnd, #True)
 Delay(100)
 Debug i
Next

FlashWindow_(hWnd, #False)

Repeat : Until WaitWindowEvent() = #PB_Event_CloseWindow

Again thanks for your interest, if you have another good idea for linked my two windows, or draw a frame around my target window, i'm always here (Unfortunately for you all )
Have a very good day MASTER Firace

[Caronte3D]

I think is Better if you get rid of the Delay() with something like that:

Code: Select all

EnableExplicit

OpenWindow(0, 100, 100, 140, 80, "Test")

Define ExplorerWindowTitle$ = "OS (C:)"    ; <<<--- change this to the title of your explorer window



Define hWnd = FindWindow_(0, @ExplorerWindowTitle$)



Define Elapsed.q         = ElapsedMilliseconds()
Define flashCurrentCount = 1
Define maxFlashCount     = 20
Define flashDelay        = 100

Repeat

  If ElapsedMilliseconds() - flashDelay > Elapsed And flashCurrentCount <= 20
    Elapsed = ElapsedMilliseconds()
    FlashWindow_(hWnd, #True)
    Debug flashCurrentCount
    flashCurrentCount + 1
  ElseIf flashCurrentCount = 20
      ;flashCurrentCount=1
    FlashWindow_(hWnd, #False)
  EndIf

Until WaitWindowEvent(10) = #PB_Event_CloseWindow

[Kwai chang caine]

Hello Caronte3D
Yes your flash is more regular
Thanks for your interest

[breeze4me]

Try this.

Code: Select all

Procedure Event_ResizeWnd()
  Protected Wnd = EventWindow()
  Protected w = WindowWidth(Wnd)
  Protected h = WindowHeight(Wnd)
  Static img

  If IsImage(img) : FreeImage(img): EndIf
  If w > 0 And h > 0
    img = CreateImage(#PB_Any, w, h, 24, #Red)
    If img
      If StartDrawing(ImageOutput(img))
        Box(10, 10, w - 20, h - 20, #White)
        StopDrawing()
        SetGadgetState(0, ImageID(img))
      EndIf
    EndIf
  EndIf
EndProcedure

hWnd = OpenWindow(0, 0, 0, 0, 0, "", #PB_Window_BorderLess | #PB_Window_Invisible)
SetWindowLongPtr_(hWnd, #GWL_EXSTYLE, GetWindowLongPtr_(hWnd, #GWL_EXSTYLE) | #WS_EX_LAYERED)
SetLayeredWindowAttributes_(hWnd, #White, 0, #LWA_COLORKEY)
ImageGadget(0, 0, 0, 0, 0, 0)

BindEvent(#PB_Event_SizeWindow, @Event_ResizeWnd(), 0)

Hwnd = FindWindow_("CabinetWClass", "C:\")

HideWindow(0, 0)

Repeat

 WindowEvent()
 Delay(1)
 GetWindowRect_(Hwnd, Cible.rect)
 SetWindowPos_(WindowID(0), hwnd, Cible\left, Cible\top - 6, Cible\right - Cible\left, Cible\bottom - Cible\top + 6, #SWP_NOACTIVATE)

Until GetAsyncKeyState_(#VK_ESCAPE)

[firace]

Hi KCC, happy to talk to you too!

Sorry I don't have enough time to look at your frame code, but here's another crazy idea, "shaking" the window so you can notice it:

Code: Select all

ExplorerWindowTitle$ = "OS (C:)"    ;  <<<--- change this to the title of your explorer window

hWnd=FindWindow_(0, @ExplorerWindowTitle$)

GetWindowRect_(hWnd,re.RECT)

L = re\left
R = re\right
T = re\top
B = re\bottom
W = R - L
H = B - T

for a = 1 to 5
  moveWindow_(hwnd, L, T, W, H, 0)
  delay(80)
  moveWindow_(hwnd, L+10, T+10, W, H, 0)
  delay(80)
next

[Kwai chang caine]

Ouaaaaarfff !!! Ouaaaaarfff !!!


DYING of laughter

Really FIRACE ....your humor equal to your knowledge and it's very difficult to achieve it
I not have thinking to this two
Another great idea to keep

The only one problem, it's if I have to leave the distinctive sign in place for hours to recognize my window,



I'm not sure I'll escape unscathed



Thanks a lot for your nice present MASTER

[firace]

I'm glad to see that you still have your gigantic collection of crazy GIFs

[Kwai chang caine]

Thanks a lot for your compliment, it touches me deeply especially coming to one of my MASTER heroes

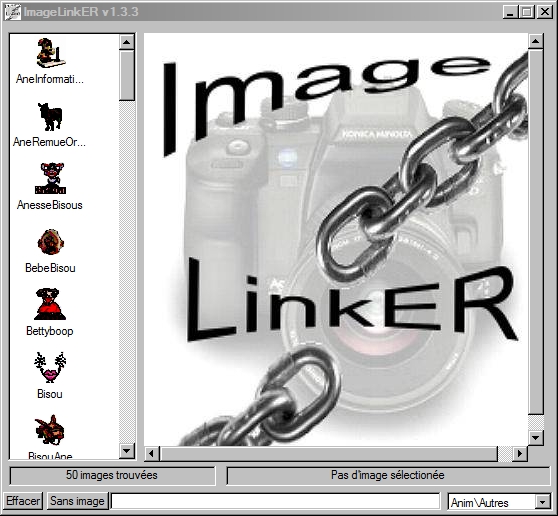

All my collection and mainly my little software, only created for manage all my numerous childrens
