PB Special ExplorerTreeGadget() {Windows]

RASHAD · Post by **RASHAD** » Wed Jul 12, 2023 6:02 pm

Hi all
Hi KCC

The next should satisfy your requirement (I hope)
You can colorize any item with any colors
Enable selecting color in the next ROUND

Code: Select all

#TV_FIRST = $1100
#TVM_MAPACCIDTOHTREEITEM = (#TV_FIRST + 42)
#TVM_MAPHTREEITEMTOACCID = (#TV_FIRST + 43)

Global selitem,selitem2

Procedure winCB(hWnd, uMsg, wParam, lParam)
  Protected result, row
  Protected *TVCDHeader.NMTVCUSTOMDRAW
  result = #PB_ProcessPureBasicEvents
  Select uMsg
    Case #WM_NOTIFY
      *pnmh.NMHDR = lParam
      Select *pnmh\code
        Case #NM_CUSTOMDRAW
          *TVCDHeader.NMTVCUSTOMDRAW = lParam
          Select *TVCDHeader\nmcd\dwDrawStage
            Case #CDDS_PREPAINT
              result = #CDRF_NOTIFYITEMDRAW
            Case #CDDS_ITEMPREPAINT
              row = *TVCDHeader\nmcd\dwItemSpec
              If row = selitem Or row = selitem2
                *TVCDHeader\clrTextBk = $00FF00
                *TVCDHeader\clrText = $0000FF
              Else
                *TVCDHeader\clrTextBk = $FFFFFF
                *TVCDHeader\clrText = $FF0000
              EndIf
              If *TVCDHeader\nmcd\uItemState & #CDIS_SELECTED
                *TVCDHeader\clrTextBk = $F39502
                *TVCDHeader\clrText = $FFFFFF
              EndIf
              result = #CDRF_DODEFAULT
          EndSelect
      EndSelect
  EndSelect
  ProcedureReturn result
EndProcedure

OpenWindow(0, 0, 0, 400, 500, "", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
SetWindowColor(0,0)
ExplorerTreeGadget(0, 10, 10, 380, 480, "c:\*.*", #PB_Explorer_AlwaysShowSelection)
selitem = SendMessage_(GadgetID(0), #TVM_MAPACCIDTOHTREEITEM,10,0)
selitem2 = SendMessage_(GadgetID(0), #TVM_MAPACCIDTOHTREEITEM,11,0)
SetWindowCallback(@winCB())
SetActiveGadget(0)
;InvalidateRect_(GadgetID(0),0,1)
Repeat
  Select WaitWindowEvent(1)
    Case #PB_Event_CloseWindow
      Quit = 1

  EndSelect
Until Quit = 1

Edit :Added Select item coloring

Kwai chang caine · Post by **Kwai chang caine** » Wed Jul 12, 2023 6:24 pm

Wahooouhhh !!!

What word can be say in front of this fireworks of API ???

I knew that the great RASHAD was not going to give up in the face of adversity and was going to bring him to heel this ExplorerTreeGaget of misfortune

Thanks a lot my millennium friend for create this miracle for little KCC

Three questions come to me

1/ Why i'm again forcing to enable the Xp theme ?

(You have see i have thinking to enable it this time

)
2/ Why the first drive C is in the index 8 ?

3/ How can i change color of an index expanded between 8 and 9 ?

AZJIO · Post by **AZJIO** » Wed Jul 12, 2023 7:03 pm

Code: Select all

#TV_FIRST = $1100
#TVM_MAPACCIDTOHTREEITEM = (#TV_FIRST + 42)
#TVM_MAPHTREEITEMTOACCID = (#TV_FIRST + 43)

Global selitem, selitem2

Procedure winCB(hWnd, uMsg, wParam, lParam)
	Protected result, row
	Protected *TVCDHeader.NMTVCUSTOMDRAW
	result = #PB_ProcessPureBasicEvents
	Select uMsg
		Case #WM_NOTIFY
			*pnmh.NMHDR = lParam
			Select *pnmh\code
				Case #NM_CUSTOMDRAW
					*TVCDHeader.NMTVCUSTOMDRAW = lParam
					Select *TVCDHeader\nmcd\dwDrawStage
						Case #CDDS_PREPAINT
							result = #CDRF_NOTIFYITEMDRAW
						Case #CDDS_ITEMPREPAINT
							row = *TVCDHeader\nmcd\dwItemSpec
							If row = selitem
								*TVCDHeader\clrTextBk = $008800
								*TVCDHeader\clrText = $00FFFF
							Else
								*TVCDHeader\clrTextBk = $FFFFFF
								*TVCDHeader\clrText = $880000
							EndIf
							result = #CDRF_DODEFAULT
					EndSelect
			EndSelect
	EndSelect
	ProcedureReturn result
EndProcedure

OpenWindow(0, 0, 0, 400, 500, "", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
SetWindowColor(0, 0)
ExplorerTreeGadget(0, 10, 10, 380, 480, "c:\*.*", #PB_Explorer_AlwaysShowSelection)
InvalidateRect_(GadgetID(0), 0, 1)
SetWindowCallback(@winCB())
Repeat
	Select WaitWindowEvent(1)
		Case #PB_Event_CloseWindow
			Quit = 1
		Case #PB_Event_Gadget
			Select EventGadget()
				Case 0
					If EventType() = #PB_EventType_LeftClick
						selitem = SendMessage_(GadgetID(0), #TVM_GETNEXTITEM, #TVGN_CARET, 0)
						InvalidateRect_(GadgetID(0), 0, 1)
					EndIf
			EndSelect
	EndSelect
Until Quit = 1

RASHAD · Post by **RASHAD** » Wed Jul 12, 2023 8:11 pm

Hi KCC
1- For XP theme https://learn.microsoft.com/en-us/windo ... ohtreeitem
You need XP theme when using #TVM_MAPACCIDTOHTREEITEM and\or #TVM_MAPACCIDTOHTREEITEM
See MSDN remark

2- When enumerate the gadget all items you will discover that there are 7 rounds for Windows usage only

3- I will try to add the items ID in a simple way (just give me some time

)

RASHAD · Post by **RASHAD** » Wed Jul 12, 2023 8:32 pm

Previous post updated
Select item as it should be

Fangbeast · Post by **Fangbeast** » Thu Jul 13, 2023 12:59 am

I think we need to convince MS to add in a KCC_ API with an excitement level variable:):)

RASHAD · Post by **RASHAD** » Thu Jul 13, 2023 3:03 am

Hi Fang

with an excitement level variable

Fangbeast · Post by **Fangbeast** » Fri Jul 14, 2023 9:34 am

RASHAD wrote: Thu Jul 13, 2023 3:03 am Hi Fang
with an excitement level variable

/me bows to the mighty wizard, teaching the kcc apprentice is a full time job for a wizard:):)

Kwai chang caine · Post by **Kwai chang caine** » Fri Jul 14, 2023 5:55 pm

Thanks a lot for yours explanations

mAPIster wrote:You need XP theme when using #TVM_MAPACCIDTOHTREEITEM and\or #TVM_MAPACCIDTOHTREEITEM
See MSDN remark

Ok i have understand (Yes i know..it's a miracle

)

mAPIster wrote:When enumerate the gadget all items you will discover that there are 7 rounds for Windows usage only

Euuhhh !!! not really understand

but if you say that...t's is right

The most important it's on all the machines of the world it's the same behavior

mAPIster wrote:Previous post updated
Select item as it should be

I have not understand that too

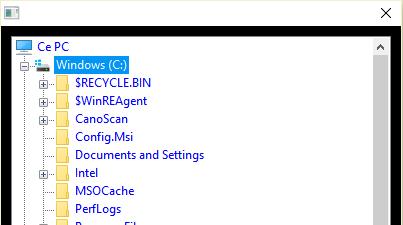

When i run your code, the drive "C:" is already expanded
Then...if i want change the color of the "Canoscan" folder...how can i do because it is between 9 and 10

Fangbeast wrote:I think we need to convince MS to add in a KCC_ API with an excitement level variable:):)

Yes..you have right

Fangbeast wrote:/me bows to the mighty wizard, teaching the kcc apprentice is a full time job for a wizard:):)

You have again right, I have lost count of the number of nice members "Sparkie, Netmaestro, Srod, Celtic, etc ..." who have abandoned this quest

RASHAD · Post by **RASHAD** » Fri Jul 14, 2023 7:26 pm

Hi KCC
1- Make sure that the target folder is visible (CanoScan)
2- Execute RUN

Code: Select all

#TV_FIRST = $1100
#TVM_MAPACCIDTOHTREEITEM = (#TV_FIRST + 42)
#TVM_MAPHTREEITEMTOACCID = (#TV_FIRST + 43)

Global selitem,selitem2,selitem3

Procedure.s GetItemText(TV_H)
  text.s = Space(#MAX_PATH)
  pitem.TV_ITEM
  pitem\mask = #TVIF_TEXT
  pitem\hItem = SendMessage_(TV_H, #TVM_GETNEXTITEM, #TVGN_CARET,0)
  pitem\pszText = @text
  pitem\cchTextMax = #MAX_PATH
  If (pitem\hItem)
    SendMessage_(TV_H, #TVM_GETITEM, 0, @pitem)
    ProcedureReturn PeekS(pitem\pszText)
  EndIf
EndProcedure

Procedure winCB(hWnd, uMsg, wParam, lParam)
  Protected result, row
  Protected *TVCDHeader.NMTVCUSTOMDRAW
  result = #PB_ProcessPureBasicEvents
  Select uMsg
    Case #WM_NOTIFY
      *pnmh.NMHDR = lParam
      Select *pnmh\code
        Case #NM_CUSTOMDRAW
          *TVCDHeader.NMTVCUSTOMDRAW = lParam
          Select *TVCDHeader\nmcd\dwDrawStage
            Case #CDDS_PREPAINT
              result = #CDRF_NOTIFYITEMDRAW
            Case #CDDS_ITEMPREPAINT
              If *TVCDHeader\nmcd\uItemState & #CDIS_SELECTED
                *TVCDHeader\clrTextBk = $F39502
                *TVCDHeader\clrText = $FFFFFF
              Else
                row = *TVCDHeader\nmcd\dwItemSpec
                If row = selitem Or row = selitem2 Or row = selitem3
                  *TVCDHeader\clrTextBk = $00FF00
                  *TVCDHeader\clrText = $0000FF
                Else
                  *TVCDHeader\clrTextBk = $FFFFFF
                  *TVCDHeader\clrText = $FF0000
                EndIf
              EndIf

              result = #CDRF_DODEFAULT
          EndSelect
      EndSelect
  EndSelect
  ProcedureReturn result
EndProcedure

OpenWindow(0, 0, 0, 400, 500, "", #PB_Window_SystemMenu | #PB_Window_ScreenCentered)
SetWindowColor(0,0)
ExplorerTreeGadget(0, 10, 10, 380, 450, "C:\*.*", #PB_Explorer_AlwaysShowSelection)
ButtonGadget(1,10,470,80,24,"RUN")
selitem = SendMessage_(GadgetID(0), #TVM_MAPACCIDTOHTREEITEM,10,0)
selitem2 = SendMessage_(GadgetID(0), #TVM_MAPACCIDTOHTREEITEM,11,0)
SetWindowCallback(@winCB())
InvalidateRect_(GadgetID(0),0,1)
list_Count = SendMessage_(GadgetID(0), #TVM_GETCOUNT,0,0)
itemH = SendMessage_(GadgetID(0), #TVM_GETNEXTITEM, #TVGN_FIRSTVISIBLE,0)
Repeat
  Select WaitWindowEvent(1)
    Case #PB_Event_CloseWindow
      Quit = 1

    Case #PB_Event_Gadget
      Select EventGadget()
        Case 1
          HideGadget(0,1)
          list_Count = SendMessage_(GadgetID(0), #TVM_GETCOUNT,0,0)
          For n = 0 To list_Count
            mselitem = SendMessage_(GadgetID(0), #TVM_MAPACCIDTOHTREEITEM,n,0)
            If Not mselitem
              list_Count + 1
            EndIf
            If mselitem
              SendMessage_(GadgetID(0), #TVM_SELECTITEM,#TVGN_CARET,mselitem)
              If GetItemText(GadgetID(0)) = "CanoScan"
                selitem3 = mselitem
              EndIf
            EndIf
          Next
          SendMessage_(GadgetID(0), #TVM_SELECTITEM,#TVGN_CARET,itemH)
          HideGadget(0,0)
      EndSelect

  EndSelect
Until Quit = 1
