Windows API is stupid!

Paul · Post by **Paul** » Sat Jun 21, 2008 10:59 pm

Works sometimes and other times the transparency goes away...

Kwai chang caine · Post by **Kwai chang caine** » Sat Jun 21, 2008 11:14 pm

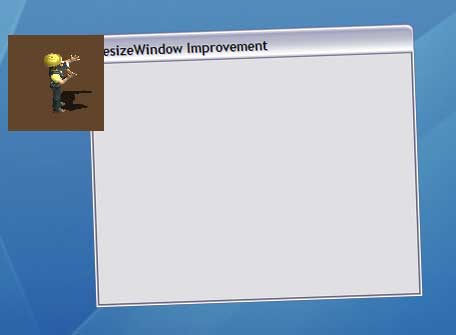

Yes, i have the same problem
I have always the square brown.

XP SP2

Otherwise, very nice......especially for me, who research to create a little personage like this

Congratulation, you are great

netmaestro · Post by **netmaestro** » Sat Jun 21, 2008 11:20 pm

Yes, i have the same problem
I have always the square brown.

Ha, interesting. Fixed.

Fangbeast · Post by **Fangbeast** » Sun Jun 22, 2008 2:39 am

This was funny, thanks.

JCV · Post by **JCV** » Sun Jun 22, 2008 2:04 pm

Foz · Post by **Foz** » Sun Jun 22, 2008 2:13 pm

Love it

Kwai chang caine · Post by **Kwai chang caine** » Sun Jun 22, 2008 4:42 pm

Ha, interesting. Fixed.

Yes, you are right, it's fixed now

It's more better without the brown square

You are really a great frog

Now and for a long time ago, i don't eat any frog

Especialy, if she have tooth

Because, it's dangerous, perhaps i already eat a C programer, or a Delphi programer

Nobody know that, but apparently the frog have a big brain

I'm very interesting for create a personage like that, but more large.
It's there difficult to found on the web a personage with all the positions possibles on a green, blue or blank background

Thanks again for this genial executable.

Post by **Berikco** » Sun Jun 22, 2008 4:52 pm

This is realy great, i put it secretly on my friend's computer in startup, he was so scared it was a virus

netmaestro · Post by **netmaestro** » Sun Jun 22, 2008 6:06 pm

Small update:

- Fixed an issue where clicking a lot on the window near the end could have caused an IMA

- Added single-instance enforcement

- Source is released

You'll need the sounds and pictures: https://lloydsplace.com/winapistupid.zip

I got the builder sprites free from here: http://reinerstileset.4players.de/

The program could be made smaller by using gdiplus to tilt the window and using small sprites to update only the dented part of the window, but these are more work and I'm too lazy...

Code: Select all

;========================================================================
; Program:          Resize Window Improvement
; Author:           Lloyd Gallant (netmaestro)
; Date:             June 21, 2008
; Target OS:        Windows 2000/XP and later
; Target Compiler:  PureBasic 4.0 and later
; License:          Free, unrestricted, no warranty
; Why:              I just haven't written anything silly in a while
;========================================================================

Import "gdiplus.lib"
  GdipCreateBitmapFromStream(*stream, *image)
  GdipGetImageWidth(*image, *Width)
  GdipGetImageHeight(*image, *Height)
  GdipCreateFromHDC( hdc.i, *gfx)
  GdipDrawImageRectI(*gfx, *image, a.i, b.i, Width.i, Height.i)
  GdipDeleteGraphics(*gfx)
  GdipDisposeImage(*image)
  GdiplusStartup(*token, *input, a.i)
  GdiplusShutdown(*token)
EndImport

Declare CatchPNG(ImageNumber, Address, Length)
Declare MainThread(void)
Declare WalkingW(void)
Declare WalkingE(void)
Declare WalkingNE(void)
Declare WalkingSE(void)
Declare HammeringE(void)
Declare HammeringW(effect)
Declare UpdateWindow(window,img)
Declare Instance_Running(LockStr$)

DataSection
  sheet:
  IncludeBinary "builder2.png"
  endsheet:
  win1:
  IncludeBinary "win1.png"
  endwin1:
  tilt1:
  IncludeBinary "win2.png"
  endtilt1:
  tilt2:
  IncludeBinary "win3.png"
  endtilt2:
  bent1:
  IncludeBinary "win4.png"
  endbent1:
  bent2:
  IncludeBinary "win5.png"
  endbent2:
  swear:
  IncludeBinary "swear.png"
  endswear:
  giveup:
  IncludeBinary "giveup.png"
  endgiveup:
  walk:
  IncludeBinary "walk.wav"
  hammer:
  IncludeBinary "hammer.wav"
EndDataSection

If Instance_Running("netmaestro's Resize Window Improvement")
  End
EndIf

Global soundon = InitSound()
If soundon
  CatchSound(0, ?hammer)
  CatchSound(1, ?walk)
EndIf

CatchPNG(0, ?sheet,?endsheet-?sheet)
Global win1    = CatchPNG(#PB_Any, ?win1, ?endwin1-?win1)
Global tilt1   = CatchPNG(#PB_Any, ?tilt1, ?endtilt1-?tilt1)
Global tilt2   = CatchPNG(#PB_Any, ?tilt2, ?endtilt2-?tilt2)
Global bent1   = CatchPNG(#PB_Any, ?bent1, ?endbent1-?bent1)
Global bent2   = CatchPNG(#PB_Any, ?bent2, ?endbent2-?bent2)
Global swear   = CatchPNG(#PB_Any, ?swear, ?endswear-?swear)
Global giveup  = CatchPNG(#PB_Any, ?giveup, ?endgiveup-?giveup)
Global wait    = GrabImage(0,#PB_Any, 16*96,192,96,96)
Global threadfinished=0


Global NewList walke()
For i=0 To 7
  AddElement(walke())
  walke()=GrabImage(0,#PB_Any, 96*i,0,96,96)
Next
FirstElement(walke())

Global NewList walkw()
For i=0 To 7
  AddElement(walkw())
  walkw()=GrabImage(0, #PB_Any, i*96,96,96,96)
Next
FirstElement(walkw())

Global NewList walkne()
For i=0 To 7
  AddElement(walkne())
  walkne()=GrabImage(0,#PB_Any, i*96,192,96,96)
Next
FirstElement(walkne())

Global NewList hammere()
For i=0 To 10
  AddElement(hammere())
  hammere()=GrabImage(0, #PB_Any, (96*8)+i*96,0,96,96)
Next
FirstElement(hammere())

Global NewList hammerw()
For i=0 To 10
  AddElement(hammerw())
  hammerw()=GrabImage(0, #PB_Any, (96*8)+i*96,96,96,96)
Next
FirstElement(hammerw())

Global NewList walkse()
For i=0 To 7
  AddElement(walkse())
  walkse()=GrabImage(0,#PB_Any, (96*8)+i*96,192,96,96)
Next
FirstElement(walkse())

win=OpenWindow(0,0,0,320,290,"ResizeWindow Improvement",#PB_Window_BorderLess|#PB_Window_Invisible|#PB_Window_ScreenCentered)
SetWindowLong_(win,#GWL_EXSTYLE, GetWindowLong_(win,#GWL_EXSTYLE)|#WS_EX_LAYERED|#WS_EX_TOOLWINDOW)
UpdateWindow(0, win1)
StickyWindow(0,1)

win2=OpenWindow(1,0,0,320,290,"",#PB_Window_BorderLess|#PB_Window_Invisible, WindowID(0))
SetWindowLong_(win2,#GWL_EXSTYLE, GetWindowLong_(win2,#GWL_EXSTYLE)|#WS_EX_LAYERED|#WS_EX_TOOLWINDOW)
UpdateWindow(1, swear)
StickyWindow(1,1)

HideWindow(0,0)

man = OpenWindow(9,0,0,96,96,"",#PB_Window_BorderLess|#PB_Window_Invisible|#PB_Window_ScreenCentered, WindowID(0))
SetWindowLong_(man,#GWL_EXSTYLE, GetWindowLong_(man,#GWL_EXSTYLE)|#WS_EX_LAYERED|#WS_EX_TOOLWINDOW)
StickyWindow(9,1)
UpdateWindow(9,wait)

main_tid = CreateThread(@MainThread(),0)

Repeat
  WaitWindowEvent(10)
Until GetAsyncKeyState_(#VK_ESCAPE) & 32768
End

Procedure MainThread(void)
  Protected tid

  ; Opening view
  Delay(1000)
  HideWindow(9,0)
  Delay(1000)

  ; Walk to top right corner
  tid=CreateThread(@WalkingNE(),0)
  Repeat
    Delay(1)
  Until WindowX(9)>=WindowX(0)+WindowWidth(0)-20
  threadfinished = #True:WaitThread(tid)

  ; Hammer on right corner
  tid=CreateThread(@HammeringW(),0)
  WaitThread(tid)
  Delay(500)
  ResizeWindow(1, WindowX(9)+10,WindowY(9)-80,#PB_Ignore,#PB_Ignore)
  HideWindow(1,0):Delay(2000):HideWindow(1,1)

  ; Walk to top left corner
  tid=CreateThread(@WalkingW(),0)
  Repeat
    Delay(1)
  Until WindowX(9)<=WindowX(0)-110
  threadfinished = #True:WaitThread(tid)
  tid=CreateThread(@WalkingSE(),0)
  Repeat
    Delay(1)
  Until WindowX(9)>=WindowX(0)-80
  threadfinished = #True:WaitThread(tid)

  ; Hammer on left corner
  tid=CreateThread(@HammeringE(),0)
  WaitThread(tid)

  ; Walk to right of mid-window
  tid=CreateThread(@WalkingSE(),0)
  Repeat
    Delay(1)
  Until WindowX(9)>=WindowX(0)+20
  threadfinished = #True:WaitThread(tid)
  tid=CreateThread(@WalkingE(),0)
  Repeat
    Delay(1)
  Until WindowX(9)>=WindowX(0)+WindowWidth(0)-20
  threadfinished = #True:WaitThread(tid)

  ; Hammer on mid-window
  tid=CreateThread(@HammeringW(),1) ; parameter specifies effect of hammering: 0=tilt,1=dent
  WaitThread(tid)
  Delay(500)
  ResizeWindow(1, WindowX(9)+10,WindowY(9)-80,#PB_Ignore,#PB_Ignore)
  HideWindow(1,0):Delay(2000):HideWindow(1,1)

  ; Walk back to mid window and give up
  tid=CreateThread(@WalkingW(),0)
  Repeat
    Delay(1)
  Until WindowX(9)<=WindowX(0)+110
  threadfinished = #True:WaitThread(tid)
  UpdateWindow(9, wait)
  Delay(1000)
  UpdateWindow(1, giveup)
  ResizeWindow(1, WindowX(9),WindowY(9)-110,#PB_Ignore,#PB_Ignore)
  HideWindow(1,0):Delay(3000):HideWindow(1,1)

  ; End the program
  PostMessage_(WindowID(0), #WM_SYSCOMMAND, #SC_CLOSE,0)

EndProcedure

Procedure HammeringW(effect)
  Protected hits = 0 ; Counts the hits
  Protected cc   = 0 ; Counts the sprite frames, record a hit on 7th frame

  Repeat
    UpdateWindow(9, hammerw())
    If cc=7
      If soundon
        PlaySound(0)
      EndIf
      hits+1
    EndIf
    Delay(100)
    If Not NextElement(hammerw())
      FirstElement(hammerw())
      cc=0
    Else
      cc+1
    EndIf
    Select effect
      Case 0
        If hits = 2
          UpdateWindow(0, tilt1)
        EndIf
        If hits = 4
          UpdateWindow(0,tilt2)
        EndIf
      Case 1
        If hits = 2
          UpdateWindow(0,bent1)
          ResizeWindow(9,WindowX(9)-1,#PB_Ignore,#PB_Ignore,#PB_Ignore)
        EndIf
        If hits = 4
          UpdateWindow(0,bent2)
        EndIf
    EndSelect
  Until hits = 4 And cc=0
EndProcedure

Procedure HammeringE(void)
  Protected hits = 0 ; Counts the hits
  Protected cc   = 0 ; Counts the sprite frames, record a hit on 7th frame

  Repeat
    UpdateWindow(9, hammere())
    If cc=7
      If soundon
        PlaySound(0)
      EndIf
      hits+1
    EndIf
    Delay(100)
    If Not NextElement(hammere())
      FirstElement(hammere())
      cc=0
    Else
      cc+1
    EndIf
    If hits = 2
      UpdateWindow(0,tilt1)
    EndIf
    If hits = 4
      UpdateWindow(0,win1)
    EndIf

  Until hits = 4 And cc=0
EndProcedure

Procedure WalkingW(void)
  threadfinished=0
  Repeat
    UpdateWindow(9,walkw())
    If (cc=1 Or cc=5) And soundon
      PlaySound(1)
    EndIf
    ResizeWindow(9, WindowX(9)-5,#PB_Ignore,#PB_Ignore,#PB_Ignore)
    Delay(100)
    If Not NextElement(walkw())
      FirstElement(walkw())
      cc=0
    Else
      cc+1
    EndIf
  Until threadfinished
EndProcedure

Procedure WalkingE(void)
  threadfinished=0
  Repeat
    UpdateWindow(9,walke())
    If (cc=1 Or cc=5) And soundon
      PlaySound(1)
    EndIf
    ResizeWindow(9, WindowX(9)+5,#PB_Ignore,#PB_Ignore,#PB_Ignore)
    Delay(100)
    If Not NextElement(walke())
      FirstElement(walke())
      cc=0
    Else
      cc+1
    EndIf
  Until threadfinished
EndProcedure

Procedure WalkingNE(void)
  threadfinished=0
  Repeat
    UpdateWindow(9,walkne())
    If (cc=1 Or cc=5) And soundon
      PlaySound(1)
    EndIf
    ResizeWindow(9, WindowX(9)+5,WindowY(9)-3,#PB_Ignore,#PB_Ignore)
    Delay(100)
    If Not NextElement(walkne())
      FirstElement(walkne())
      cc=0
    Else
      cc+1
    EndIf
  Until threadfinished
EndProcedure

Procedure WalkingSE(void)
  threadfinished=0
  Repeat
    UpdateWindow(9,walkse())
    If (cc=1 Or cc=5) And soundon
      PlaySound(1)
    EndIf
    ResizeWindow(9, WindowX(9)+5,WindowY(9)+5,#PB_Ignore,#PB_Ignore)
    Delay(100)
    If Not NextElement(walkse())
      cc=0
      FirstElement(walkse())
    Else
      cc+1
    EndIf
  Until threadfinished
EndProcedure

Procedure UpdateWindow(window,img)
  hDC = StartDrawing(ImageOutput(img))
    sz.SIZE
    sz\cx = ImageWidth(img)
    sz\cy = ImageHeight(img)
    ContextOffset.POINT
    BlendMode.BLENDFUNCTION
    BlendMode\SourceConstantAlpha = 255
    BlendMode\AlphaFormat = 1
    UpdateLayeredWindow_(WindowID(window), 0, 0, @sz, hDC, @ContextOffset, 0, @BlendMode, 2)
  StopDrawing()
EndProcedure

Procedure CatchPNG(ImageNumber, Address, Length)

  CompilerIf Defined(GdiplusStartupInput, #PB_Structure) = 0
    Structure GdiplusStartupInput
      GdiPlusVersion.l
      *DebugEventCallback.Debug_Event
      SuppressBackgroundThread.l
      SuppressExternalCodecs.l
    EndStructure
  CompilerEndIf

  Structure StreamObject
    block.l
    *bits
    stream.ISTREAM
  EndStructure

  Protected lib
  lib = OpenLibrary(#PB_Any, "gdiplus.dll")
  If Not lib
    ProcedureReturn -1
  EndIf

  input.GdiplusStartupInput
  input\GdiPlusVersion = 1

  GdiplusStartup( @*token, @input, #Null)
  If *token
    stream.streamobject
    Stream\block = GlobalAlloc_(#GHND, Length)
    Stream\bits = GlobalLock_(Stream\block)
    CopyMemory(address, stream\bits, Length)
    If CreateStreamOnHGlobal_(stream\bits, 0, @Stream\stream) = #S_OK
      CallFunction(lib, "GdipCreateBitmapFromStream", Stream\stream , @*image)
      Stream\stream\Release()
      GlobalUnlock_(Stream\bits)
      GlobalFree_(Stream\block)
    Else
      GdiplusShutdown(*token)
      ProcedureReturn 0
    EndIf

    If *image
      GdipGetImageWidth(*image, @Width.l)
      GdipGetImageHeight(*image, @Height.l)
      If imagenumber = #PB_Any
        return_imagenumber = CreateImage(#PB_Any, Width, Height, 32, #PB_Image_Transparent)
      Else
        CreateImage(return_imagenumber, Width, Height, 32, #PB_Image_Transparent)
      EndIf
      hDC = StartDrawing(ImageOutput(return_imagenumber))
        GdipCreateFromHDC(hdc, @*gfx)
        GdipDrawImageRectI(*gfx, *image, 0, 0, Width, Height)
      StopDrawing()
      GdipDeleteGraphics(*gfx)
      GdipDisposeImage(*image)
      GdiplusShutdown(*token)

      ProcedureReturn return_imagenumber
    Else
      ProcedureReturn -1
    EndIf
  Else
    ProcedureReturn -1
  EndIf
EndProcedure

Procedure Instance_Running(LockStr$)
  *MyMutex = CreateMutex_(#Null, 1, LockStr$)
  If *MyMutex <> 0 And GetLastError_() = #ERROR_ALREADY_EXISTS
    CloseHandle_(*MyMutex)
    ProcedureReturn #True
  Else
    ProcedureReturn #False
  EndIf
EndProcedure

byo · Post by **byo** » Sun Jun 22, 2008 6:49 pm

Wow, well done.

Kwai chang caine · Post by **Kwai chang caine** » Mon Jun 23, 2008 11:49 am

I don't know if it's the fault of the PC of my job, but i have tried to run your code and your exe on it and i have some problem

This macine works on W2000 SP4, is it normal ???

netmaestro · Post by **netmaestro** » Mon Jun 23, 2008 12:08 pm

The code uses gdiplus to load the png images, and I believe gdiplus doesn't ship with w2000. But gdiplus.dll is a free download from Microsoft, so you could DL it and put it in \system32 and see if it works now.

Kwai chang caine · Post by **Kwai chang caine** » Mon Jun 23, 2008 12:48 pm

Thanks a lot, NETMAESTRO
I go to do all that you said to me

I wish you a good day
