Direct2D Include [Windows]

[minimy]

Sound really nice!! Thanks for share!

[Justin]

I did an animation test, i expected it to be a bit smoother on 4k resolution, i did not use a timer, maybe someone can improve it.
Simply save the code in the PBDirect2D folder an run it.

Code: Select all

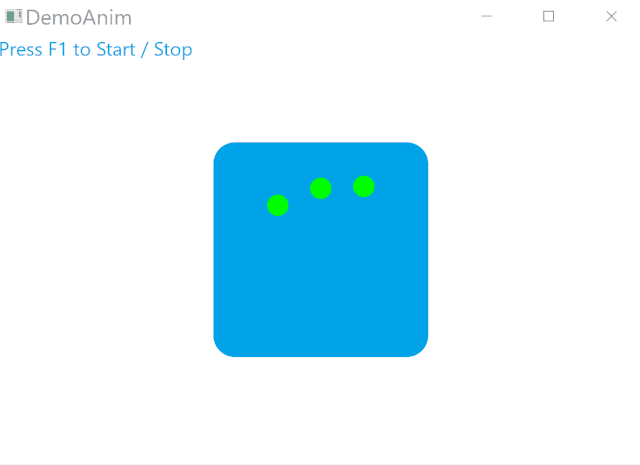

;DemoAnim.pb

IncludeFile "PBDirect2D.pb"

EnableExplicit

#ANIM_DOTS_COUNT = 3

Enumeration
	#MENU_ID_START_STOP
EndEnumeration

;- _ANIM
Structure _ANIM
	lastTime.q
	active.b
	counter.f
EndStructure

;- _APP
Structure _APP
	win.i
	menu.i
	oldProc.i

	anim._ANIM

	;Device independent resources
	d2dFactory.ID2D1Factory
	dWriteFactory.IDWriteFactory
	txtFormat.IDWriteTextFormat

	;Device dependent resources
	renderTarget.ID2D1HwndRenderTarget
	dotBrush.ID2D1SolidColorBrush
	rectBrush.ID2D1SolidColorBrush
EndStructure
Global._APP app

Procedure app_createDeviceIndependentResources()
	Protected.l hr
	Protected.D2D1_FACTORY_OPTIONS fOpts
	Protected.D2D1_STROKE_STYLE_PROPERTIES props

	fOpts\DebugLevel = #D2D1_DEBUG_LEVEL_NONE
	hr = D2D1CreateFactory_(#D2D1_FACTORY_TYPE_SINGLE_THREADED, ?IID_ID2D1Factory, @fOpts, @app\d2dFactory)

	hr = DWriteCreateFactory_(#DWRITE_FACTORY_TYPE_SHARED, ?IID_IDWriteFactory, @app\dWriteFactory)
	If hr = #S_OK
		;Text format
		hr = app\dWriteFactory\CreateTextFormat("Segoe UI", #Null, #DWRITE_FONT_WEIGHT_REGULAR,
			#DWRITE_FONT_STYLE_NORMAL, #DWRITE_FONT_STRETCH_NORMAL, 18.0,
			"en-us", @app\txtFormat)

		If hr = #S_OK
			app\txtFormat\SetTextAlignment(#DWRITE_TEXT_ALIGNMENT_LEADING)
		EndIf
	EndIf

	ProcedureReturn hr
EndProcedure

Procedure app_discardDeviceIndependentResources()
	If app\d2dFactory
		app\d2dFactory\Release() : app\d2dFactory = 0
	EndIf

	If app\dWriteFactory
		app\dWriteFactory\Release() : app\dWriteFactory = 0
	EndIf

	If app\txtFormat
		app\txtFormat\Release() : app\txtFormat = 0
	EndIf
EndProcedure

Procedure app_createDeviceResources()
	Protected.l hr
	Protected.RECT rc
	Protected.i hwnd
	Protected.D2D1_SIZE_U sz
	Protected.D2D1_RENDER_TARGET_PROPERTIES rtProps
	Protected.D2D1_HWND_RENDER_TARGET_PROPERTIES  hwndProps
	Protected.D2D1_COLOR_F color
	Protected.D2D1_BRUSH_PROPERTIES bProp

	hr = #S_OK

	If app\renderTarget = 0
		hwnd = WindowID(app\win)
		GetClientRect_(hwnd, @rc)
		sz\width = rc\right - rc\left
		sz\height = rc\bottom - rc\top

		;Create a Direct2D render target.
		rtProps\type = #D2D1_RENDER_TARGET_TYPE_DEFAULT
		rtProps\pixelFormat\format = #DXGI_FORMAT_UNKNOWN
		rtProps\pixelFormat\alphaMode = #D2D1_ALPHA_MODE_UNKNOWN
		rtProps\dpiX = 0.0
		rtProps\dpiY = 0.0
		rtProps\usage = #D2D1_RENDER_TARGET_USAGE_NONE
		rtProps\minLevel = #D2D1_FEATURE_LEVEL_DEFAULT

		hwndProps\hwnd = hwnd
		hwndProps\pixelSize\height = sz\height
		hwndProps\pixelSize\width = sz\width
		hwndProps\presentOptions = #D2D1_PRESENT_OPTIONS_NONE

		hr = app\d2dFactory\CreateHwndRenderTarget(@rtProps, @hwndProps, @app\renderTarget)
		If hr = #S_OK
			;Brushes
			bProp\opacity = 1.0

			color\r = 0 : color\g = 162/255 : color\b = 232/255 : color\a = 1.0
			app\renderTarget\CreateSolidColorBrush(@color, @bProp, @app\rectBrush)

			color\r = 0.0 : color\g = 1.0 : color\b = 0.0 : color\a = 1.0
			app\renderTarget\CreateSolidColorBrush(@color, @bProp, @app\dotBrush)
		EndIf
	EndIf

	ProcedureReturn hr
EndProcedure

Procedure app_discardDeviceResources()
	If app\renderTarget
		app\renderTarget\Release() : app\renderTarget = 0
	EndIf

	If app\dotBrush
		app\dotBrush\Release() : app\dotBrush = 0
	EndIf

	If app\rectBrush
		app\rectBrush\Release() : app\rectBrush = 0
	EndIf
EndProcedure

Procedure app_init()
	InitializeStructure(@app, _APP)
EndProcedure

Procedure app_release()
	app_discardDeviceResources()
	app_discardDeviceIndependentResources()
EndProcedure

Procedure app_onSize(width.w, height.w)
	Protected.D2D1_SIZE_U sz

	If app\renderTarget
		sz\width = width
		sz\height = height

		app\renderTarget\Resize(@sz)
	EndIf
EndProcedure

Procedure app_onRender()
	Protected.l hr, i
	Protected.q tag1, tag2
	Protected.D2D1_COLOR_F color
	Protected.D2D1_ROUNDED_RECT dotsRect
	Protected.D2D1_RECT_F rtRect
	Protected.D2D1_SIZE_F rtSize
	Protected.D2D1_ELLIPSE  dot
	Protected.f dotRectSize, t, vel
	Protected.q currentTime, deltaTime, timeDelay, t2
	Protected.s text

	hr = #S_OK

	hr = app_createDeviceResources()
	If hr = #S_OK
		app\renderTarget\BeginDraw()
		currentTime = ElapsedMilliseconds()
		deltaTime = currentTime - app\anim\lastTime
		app\anim\lastTime = currentTime

		timeDelay = 16 - deltaTime

		color\r = 1.0 : color\g = 1.0 : color\b = 1.0 : color\a = 1.0
		app\renderTarget\Clear(@color)
		app\renderTarget\GetSize(@rtSize)
		rtRect\right = rtSize\width
		rtRect\bottom = rtSize\height

		;Round Rectangle
		dotRectSize = 200.0
		dotsRect\rect\left = (rtSize\width / 2) - dotRectSize / 2
		dotsRect\rect\top = (rtSize\height / 2) - dotRectSize / 2
		dotsRect\rect\right = (rtSize\width / 2) + dotRectSize / 2
		dotsRect\rect\bottom = dotsRect\rect\top + dotRectSize ;(rtSize\height / 2) + dotRectSize / 2
		dotsRect\radiusX = 20.0
		dotsRect\radiusY = 20.0
		app\renderTarget\FillRoundedRectangle(@dotsRect, app\rectBrush)

		t = app\anim\counter
		dot\point\x = (rtSize\width / 2) - 40
		dot\point\y = (rtSize\height / 2)
		dot\radiusX = 10.0
		dot\radiusY = 10.0
		For i = 0 To #ANIM_DOTS_COUNT - 1
			If app\anim\active
				dot\point\y = (rtSize\height / 2) + (Sin(t) * ((dotRectSize / 2) - 40 ))
			EndIf

			app\renderTarget\FillEllipse(@dot, app\dotBrush)
			dot\point\x + 40
			t - 0.5
		Next

		;Text
		text = "Press F1 to Start / Stop"
		app\renderTarget\DrawText(text, Len(text), app\txtFormat, @rtRect, app\rectBrush, #D2D1_DRAW_TEXT_OPTIONS_NONE, #DWRITE_MEASURING_MODE_NATURAL)

		hr = app\renderTarget\EndDraw(@tag1, @tag2)

		app\anim\counter + 0.090
	EndIf

	If (hr = #D2DERR_RECREATE_TARGET)
		hr = #S_OK
		app_discardDeviceResources()
	EndIf

	If timeDelay > 0
		Delay(timeDelay)
	EndIf
EndProcedure

Procedure.i win_proc(hwnd.i, msg.l, wparam.i, lparam.i)
	Select msg
		Case #WM_SIZE
			app_onSize(PeekW(@lparam), PeekW(@lparam + SizeOf(Word)))

		Case #WM_DISPLAYCHANGE
			InvalidateRect_(hwnd, #Null, #False)

		Case #WM_ERASEBKGND
			Protected.RECT rc

			If Not app\anim\active
				GetClientRect_(hwnd, @rc)
				app_onSize(rc\right, rc\bottom)
				app_onRender()
				ProcedureReturn 1
			EndIf

		Case #WM_PAINT
			If Not app\anim\active
				app_onRender()
				ValidateRect_(hwnd, #Null)
				ProcedureReturn 0
			EndIf
	EndSelect

	ProcedureReturn CallWindowProc_(app\oldProc, hwnd, msg, wparam, lparam)
EndProcedure

Procedure app_processEvent(ev.l)
	Select ev
		Case #PB_Event_Menu
			Select EventMenu()
				Case #MENU_ID_START_STOP
					app\anim\active = Bool(Not app\anim\active)
					If Not app\anim\active
						app\anim\counter = 0
					EndIf

					InvalidateRect_(WindowID(app\win), 0, #False)

			EndSelect
	EndSelect
EndProcedure

Procedure main()
	Protected.l ev

	app_init()

	If app_createDeviceIndependentResources() <> #S_OK
		MessageRequester("Error" , "Failed to initialize Direct2D")
		End
	EndIf

	app\anim\active = #True

	app\win = OpenWindow(#PB_Any, 10, 10, 600, 400, "DemoAnim", #PB_Window_MaximizeGadget | #PB_Window_MinimizeGadget | #PB_Window_SizeGadget)
	app\menu = CreateMenu(#PB_Any, WindowID(app\win))
	AddKeyboardShortcut(app\win, #PB_Shortcut_F1, #MENU_ID_START_STOP)
	app\oldProc = SetWindowLongPtr_(WindowID(app\win), #GWLP_WNDPROC, @win_proc())

	Repeat
		If app\anim\active
			ev = WindowEvent()
			If ev = 0
				app_onRender()

			Else
				app_processEvent(ev)
			EndIf

		Else
			ev = WaitWindowEvent()
			app_processEvent(ev)
		EndIf

	Until ev = #PB_Event_CloseWindow
EndProcedure

main()

[pjay]

I'm running an Intel iGPU here and it takes < 1ms rendering (at 2560x1440 though, not 4k), so it's nice and fast here Justin (it should be to be fair, for such a simple scene).

I did disable vSync (hwndProps\presentOptions = #D2D1_PRESENT_OPTIONS_IMMEDIATELY), removed the Delay() & adjusted animation speed to tie-in with elapsed milliseconds to get the measurements.

Cool project & very powerful for 2d rendering, thanks for sharing.

[Justin]

Added Windows Animation Manager component:
https://learn.microsoft.com/en-us/windo ... ain-portal
It handles animations and transitions, it runs better.
Example in DemoWAM.pb in the repo.

Hi pjay,

the #D2D1_PRESENT_OPTIONS_IMMEDIATELY flag makes a big difference thanks for the tip, but the cpu usage is also high, about 10-15% could you reduce it?

Anyways, using the WAM runs pretty smooth, enough for UI animations.

Now i think the code is ready to attemp a DirectX animated canvas gadget, i will try it in a few days.

[Justin]

Just noticed that with the current settings the alpha channel was not supported, you have to use a pixelformat with #DXGI_FORMAT_B8G8R8A8_UNORM and #D2D1_ALPHA_MODE_PREMULTIPLIED flags.

Updated and opacity animation test in DemoWAM.pb.

[Prod]

This is most excellent.
Could you provide an example of how to use CreateBitmap and DrawBitmap?

[IceSoft]

link no longer existing:

The files are at github:
https://github.com/omegakode/PBDirect2D

[PeDe]

link no longer existing:

The files are at github:
https://github.com/omegakode/PBDirect2D

I have downloaded the files as a ZIP archive (149 KiB):
https://www.dreisiebner.at/temp/PBDirec ... -09-12.zip

Peter

[Justin]

Hi,

the files are up again, i needed to make it private for some time, now is public again.

This code creates a bitmap in memory, draws it to the window and you can save it as a jpg using File->Save.

For loading and drawing an image from a file is in DemoApp.pb.

Code: Select all

IncludeFile "PBDirect2D.pb"

;https://www.codeproject.com/Articles/5269188/Direct2D-Tutorial-Part-1-RenderTarget#bitmap

EnableExplicit

;- Enum MENU_ID
Enumeration
	#MENU_ID_SAVE
EndEnumeration

;- _APP
Structure _APP
	win.i
	menu.i
	d2dFactory.ID2D1Factory
	imgFactory.IWICImagingFactory
	renderTarget.ID2D1HwndRenderTarget
	brush1.ID2D1SolidColorBrush
	d2dBmp.ID2D1Bitmap
	wicBmp.IWICBitmap
	oldProc.i
EndStructure
Global._APP app

Procedure app_discardDeviceDependentResources()
	If app\renderTarget
		app\renderTarget\Release() : app\renderTarget = 0
	EndIf

	If app\brush1
		app\brush1\Release() : app\brush1 = 0
	EndIf

	If app\d2dBmp
		app\d2dBmp\Release() : app\d2dBmp = 0
	EndIf
EndProcedure

Procedure app_release()
	If app\d2dFactory
		app\d2dFactory\Release() : app\d2dFactory = 0
	EndIf

	If app\imgFactory
		app\imgFactory\Release() : app\imgFactory = 0
	EndIf

	app_discardDeviceDependentResources()
EndProcedure

;Creates a WIC Bitmap
Procedure.i app_createImage(imgFactory.IWICImagingFactory)
	Protected.IWICBitmap wicBmp
	Protected.D2D1_BRUSH_PROPERTIES bProp
	Protected.D2D1_RENDER_TARGET_PROPERTIES rtProps
	Protected.ID2D1SolidColorBrush brush1
	Protected.D2D1_COLOR_F color
	Protected.ID2D1RenderTarget bmpRt
	Protected.D2D1_ROUNDED_RECT rc
	Protected.q tag1, tag2

	imgFactory\CreateBitmap(200, 200, ?GUID_WICPixelFormat32bppPBGRA, #WICBitmapCacheOnLoad, @wicBmp)

	;Create bitmap render target
	rtProps\type = #D2D1_RENDER_TARGET_TYPE_DEFAULT
	;Enable alpha channel
	rtProps\pixelFormat\format = #DXGI_FORMAT_B8G8R8A8_UNORM
	rtProps\pixelFormat\alphaMode = #D2D1_ALPHA_MODE_PREMULTIPLIED
	rtProps\dpiX = 0.0
	rtProps\dpiY = 0.0
	rtProps\usage = #D2D1_RENDER_TARGET_USAGE_NONE
	rtProps\minLevel = #D2D1_FEATURE_LEVEL_DEFAULT

	app\d2dFactory\CreateWicBitmapRenderTarget(wicBmp, @rtProps, @bmpRt)

	;Brush
	bProp\opacity = 1.0
	color\r = 0 : color\g = 162/255 : color\b = 232/255 : color\a = 1.0
	bmpRt\CreateSolidColorBrush(@color, @bProp, @brush1)

	;Draw bitmap
	bmpRt\BeginDraw()
		color\r = 1 : color\g = 0 : color\b = 0 : color\a = 1
		bmpRt\Clear(@color)
		rc\rect\left = 10
		rc\rect\top = 10
		rc\rect\right = 100
		rc\rect\bottom = 100
		rc\radiusX = 20
		rc\radiusY = 20
		bmpRt\FillRoundedRectangle(@rc, brush1)
	bmpRt\EndDraw(@tag1, @tag2)

	bmpRt\Release()

	ProcedureReturn wicBmp
EndProcedure

Procedure app_saveImage()
	Protected.IStream stm
	Protected.IWICBitmapEncoder encoder
	Protected.IWICBitmapFrameEncode frame
	Protected.IPropertyBag2 props
	Protected.D2D1_SIZE_F bmpSize
	Protected.l bmpWidth, bmpHeight, hr
	Protected.GUID pixelFormat
	Protected.s file

	file = SaveFileRequester("Save", "test.jpg", "JPG file|*.jpg|All files|*.*", 0)
	If file = "" : ProcedureReturn : EndIf

	hr = SHCreateStreamOnFileEx_(file, #STGM_CREATE | #STGM_WRITE | #STGM_SHARE_EXCLUSIVE,
		#FILE_ATTRIBUTE_NORMAL, #True, #Null, @stm)
	If hr <> #S_OK : ProcedureReturn : EndIf

	hr = app\imgFactory\CreateEncoder(?GUID_ContainerFormatJpeg, #Null, @encoder)
	If hr <> #S_OK : ProcedureReturn : EndIf

	encoder\Initialize(stm, #WICBitmapEncoderNoCache)
	encoder\CreateNewFrame(@frame, @props)
	frame\Initialize(props)

	app\wicBmp\GetSize(@bmpWidth, @bmpHeight)
	app\wicBmp\GetPixelFormat(@pixelFormat)

	frame\SetPixelFormat(@pixelFormat)
	frame\WriteSource(app\wicBmp, #Null)

	frame\Commit()
	encoder\Commit()

	frame\Release()
	encoder\Release()

	stm\Release()
EndProcedure

Procedure app_createDeviceIndependentResources()
	Protected.D2D1_FACTORY_OPTIONS fOpts
	Protected.l hr

	;Create D2D1Factory
	fOpts\DebugLevel = #D2D1_DEBUG_LEVEL_NONE
	hr = D2D1CreateFactory_(#D2D1_FACTORY_TYPE_SINGLE_THREADED, ?IID_ID2D1Factory, @fOpts, @app\d2dFactory)

	;Create WICImagingFactory
	hr = CoCreateInstance_(?CLSID_WICImagingFactory, #Null, #CLSCTX_INPROC_SERVER, ?IID_IWICImagingFactory, @app\imgFactory)

	app\wicBmp = app_createImage(app\imgFactory)

	ProcedureReturn hr
EndProcedure

Procedure app_createDeviceDependentResources()
	Protected.RECT rc
	Protected.l hr
	Protected.i hwnd
	Protected.D2D1_SIZE_U sz
	Protected.D2D1_RENDER_TARGET_PROPERTIES props
	Protected.D2D1_HWND_RENDER_TARGET_PROPERTIES  hwndProps

	hr = #S_OK

	If app\renderTarget = 0
		hwnd = WindowID(app\win)
		GetClientRect_(hwnd, @rc)
		sz\width = rc\right - rc\left
		sz\height = rc\bottom - rc\top

		;Create a Direct2D render target.
		props\type = #D2D1_RENDER_TARGET_TYPE_DEFAULT

		;Enable alpha channel
		props\pixelFormat\format = #DXGI_FORMAT_B8G8R8A8_UNORM
		props\pixelFormat\alphaMode = #D2D1_ALPHA_MODE_PREMULTIPLIED

		props\dpiX = 0.0
		props\dpiY = 0.0
		props\usage = #D2D1_RENDER_TARGET_USAGE_NONE
		props\minLevel = #D2D1_FEATURE_LEVEL_DEFAULT

		hwndProps\hwnd = hwnd
		hwndProps\pixelSize\height = sz\height
		hwndProps\pixelSize\width = sz\width
		hwndProps\presentOptions = #D2D1_PRESENT_OPTIONS_NONE

		hr = app\d2dFactory\CreateHwndRenderTarget(@props, @hwndProps, @app\renderTarget)
		If hr = #S_OK
			;Create D2DBitmap from WICBitmap
			app\renderTarget\CreateBitmapFromWicBitmap(app\wicBmp, #Null, @app\d2dBmp)
		EndIf
	EndIf

	ProcedureReturn hr
EndProcedure

Procedure app_onSize(width.w, height.w)
	Protected.D2D1_SIZE_U sz

	If app\renderTarget
		sz\width = width
		sz\height = height

		app\renderTarget\Resize(@sz)
	EndIf
EndProcedure

Procedure app_onRender()
	Protected.l hr, x, y, width, height, txtOpts
	Protected.D2D1_COLOR_F color
	Protected.q tag1, tag2
	Protected.D2D1_SIZE_F rectSize, rtSize, bmpSize, scaledBmpSize
	Protected.D2D1_RECT_F rcF2, rcBmpDest, rcBmpSrc
	Protected.D2D1_POINT_2F bmpPos, pt
	Protected.s txt

	hr = #S_OK

	hr = app_createDeviceDependentResources()
	If hr = #S_OK
		rectSize\width = 200.0
		rectSize\height = 200.0

		app\renderTarget\BeginDraw()

		color\r = 1.0 : color\g = 1.0 : color\b = 1.0 : color\a = 1.0
		app\renderTarget\Clear(@color)
		app\renderTarget\GetSize(@rtSize)

		app\d2dBmp\GetSize(@bmpSize)
		rcBmpSrc\left = 0
		rcBmpSrc\top = 0
		rcBmpSrc\right = bmpSize\width
		rcBmpSrc\bottom = bmpSize\height

		rcBmpDest\left = 10
		rcBmpDest\top = 10
		rcBmpDest\right = rcBmpDest\left + bmpSize\width
		rcBmpDest\bottom = rcBmpDest\top + bmpSize\height

		app\renderTarget\DrawBitmap(app\d2dBmp, @rcBmpDest, 1, #D2D1_BITMAP_INTERPOLATION_MODE_NEAREST_NEIGHBOR, @rcBmpSrc)

		hr = app\renderTarget\EndDraw(@tag1, @tag2)
	EndIf

	If (hr = #D2DERR_RECREATE_TARGET)
		hr = #S_OK
		app_discardDeviceDependentResources()
	EndIf

	ProcedureReturn hr
EndProcedure

Procedure win_proc(hwnd.i, msg.l, wparam.i, lparam.i)
	Select msg
		Case #WM_SIZE
			app_onSize(PeekW(@lparam), PeekW(@lparam + SizeOf(Word)))

		Case #WM_DISPLAYCHANGE
			InvalidateRect_(hwnd, #Null, #False)

		Case #WM_ERASEBKGND
			Protected.RECT rc

			GetClientRect_(hwnd, @rc)
			app_onSize(rc\right, rc\bottom)
			app_onRender()
			ProcedureReturn 1

		Case #WM_PAINT
			app_onRender()
			ValidateRect_(hwnd, #Null)
			ProcedureReturn 0
	EndSelect

	ProcedureReturn CallWindowProc_(app\oldProc, hwnd, msg, wparam, lparam)
EndProcedure

Procedure main()
	Protected.l ev

	If app_createDeviceIndependentResources() <> #S_OK
		MessageRequester("Error" , "Failed to initialize Direct2D")
		End
	EndIf

	app\win = OpenWindow(#PB_Any, 10, 10, 600, 400, "Demo Bitmap", #PB_Window_MaximizeGadget | #PB_Window_MinimizeGadget |
		#PB_Window_SizeGadget)
	app\oldProc = SetWindowLongPtr_(WindowID(app\win), #GWLP_WNDPROC, @win_proc())

	app\menu = CreateMenu(#PB_Any, WindowID(app\win))
	MenuTitle("File")
	MenuItem(#MENU_ID_SAVE, "Save")
	BindMenuEvent(app\menu, #MENU_ID_SAVE, @app_saveImage())

	Repeat
		ev = WaitWindowEvent()

	Until ev = #PB_Event_CloseWindow

	app_release()
EndProcedure

main()
