 Post subject: OpenGL Display List with Big Colored Points, different sizes
PostPosted: Thu Sep 12, 2019 7:33 am
Offline
Addict
Addict

Joined: Sun Jun 25, 2006 7:28 pm
Posts: 1368
http://www.songho.ca/opengl/gl_displaylist.html
instead of contineously calcaulating the points again and again inside the render loop, compile everything to one list then just call that list inside the render loop
Code:
Points = glGenLists_(1)
glNewList_(Points, #GL_COMPILE_AND_EXECUTE)
drawPointsDemo(); call whatever you want
glEndList_()
...
Repeat ...
 glCallList_(Points) ; just call the List
Until ...

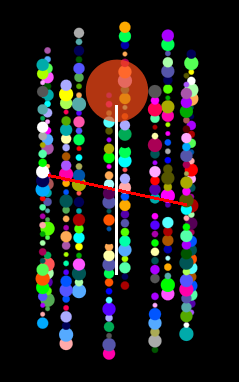

why we need big points of different sizes and colors ? i think it is useful for Data visualization and for Fun

old Graphics cards will not display Big Points, especialy the points with Alpha, look the very Big tranparent red point

tested with PB v5.71 in xp/32 and win7/x64
Experiment: comment lines 66, 67
glEnable_(#GL_POINT_SMOOTH);
glHint_(#GL_POINT_SMOOTH_HINT, #GL_NICEST);
and you will get square points not round points

Code:
Declare drawPointsDemo()

Structure vertex
  x.f ; x position
  y.f
  z.f
  r.f ; red color
  g.f
  b.f
  a.f ; alpha

EndStructure

Macro RandomFloat(Steps)
  ;https://www.purebasic.fr/english/viewtopic.php?f=13&t=73488#p541153
  (1.0 * Random(Steps) / Steps#.0)
EndMacro


Global v1.vertex
Global rot.f
Global Points.l



Define event, quit

ExamineDesktops()
Global width.f = DesktopWidth(0)-40
Global height.f = DesktopHeight(0)-40

OpenWindow(0, 0, 0, DesktopWidth(0), DesktopHeight(0), "OpenGL demo ... Display List with Big Points, different sizes and colors")
SetWindowColor(0, RGB(200,220,200))
OpenGLGadget(0, 0, 0, width , height, #PB_OpenGL_Keyboard )

Points = glGenLists_(1)
glNewList_(Points, #GL_COMPILE_AND_EXECUTE)
drawPointsDemo();
glEndList_()


SetActiveGadget(0)

glOrtho_(-150,150,-150,150,-150,150)
;glOrtho_(-100,100,-100,100,-100,100)
gluLookAt_( 0, 30, 35, ; the camera looking from position 0,0,dist  to 0,0,0 from above
            0,  0, 0,
            0,  1,  0 )


Repeat

Repeat
  event = WindowEvent()

    If event = #PB_Event_CloseWindow
      quit = #True
    EndIf
    key = GetGadgetAttribute(0,#PB_OpenGL_Key )
    If key = #PB_Shortcut_Escape ;  Esc key to exit
      quit = #True
    EndIf

  Until event = 0 Or quit = #True

  glEnable_(#GL_POINT_SMOOTH);
  glHint_(#GL_POINT_SMOOTH_HINT, #GL_NICEST);

  glEnable_(#GL_BLEND);
  glBlendFunc_(#GL_SRC_ALPHA, #GL_ONE_MINUS_SRC_ALPHA);

  glClear_(#GL_COLOR_BUFFER_BIT)
  glMatrixMode_(#GL_MODELVIEW);
  glLoadIdentity_();

  rot+1
   If rot=361:rot=0:EndIf
   glRotatef_(rot, 0,1,0)

   glCallList_(Points)

  SetGadgetAttribute(0, #PB_OpenGL_FlipBuffers, #True)
  Delay(5)
Until Event = #PB_Event_CloseWindow Or quit = #True
glDeleteLists_(Points, 1)

Procedure drawPointsDemo()
  size.f = 5
  R.f = 30.0; // Radius of helix.
  t.f = -30*#PI; // Angle parameter along helix.

  ;For i=1 To 20
   While t <= 30 * #PI
   v1\x = R * Cos(t): v1\y= t : v1\z = R * Sin(t) - 0.0
   v1\r=RandomFloat(3) : v1\g=RandomFloat(3): v1\b =RandomFloat(3) : v1\a = 1

   ;draw a point with size, color, And location
   glPointSize_(size);
   glBegin_(#GL_POINTS);
   glColor4f_(v1\r, v1\g, v1\b, v1\a);
   glVertex3f_(v1\x, v1\y, v1\z)
   glEnd_();
   t = t+(#PI/5)
   size = Random(15, 5)
 Wend
 glPointSize_(70);
   glBegin_(#GL_POINTS);
    glColor4f_(1, 0.3, 0.1, 0.7);
    glVertex3f_(0, 70,0)
   glEnd_();

      glLineWidth_(3)
      glBegin_(#GL_LINES)
        glColor4f_(1,0,0,1)
        glVertex3f_(-30, 0, 0);
        glVertex3f_(30, 0, 0)
        glColor4f_(1,1,1,1)
        glVertex3f_(0, -60,0);
        glVertex3f_(0, 60,0);
      glEnd_()

EndProcedure
