 Post subject: Visual Board version 1.0 beta 3
PostPosted: Fri Jul 12, 2019 3:30 pm
Offline
Enthusiast
Enthusiast
User avatar

Joined: Fri Jun 13, 2014 9:38 am
Posts: 130
Hello all,

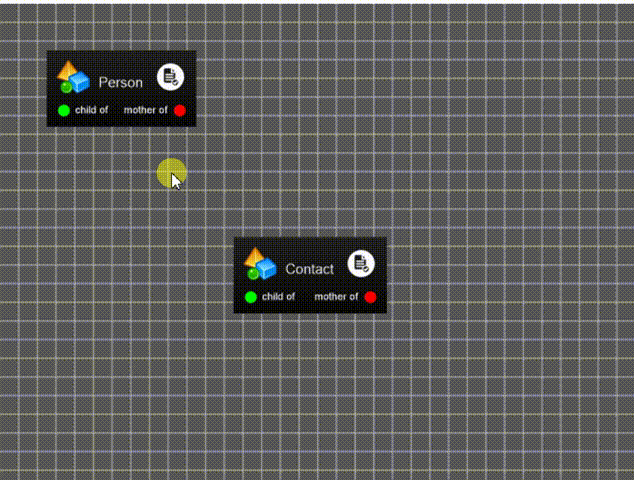

This is a module for displaying nodes and links,

I have lot of work for finish it.

(I make some help, but it's not available at the moment)

TO GITHUB
User help

Version history:
  • Beta 2 -> Fixed -> x86 fatal bug

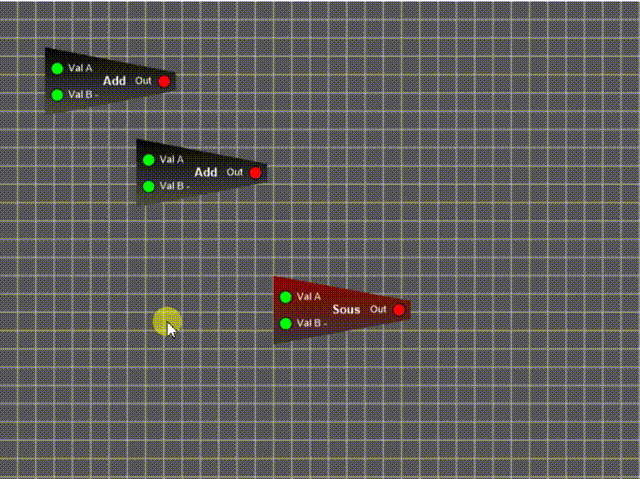

  • Beta 3 -> Added -> Class Triangle




How testing :
  • Run you editor PureBasic
  • Past and save this below code in your personal directory
  • Run it compilation
  • Agree to download this package
  • Run "EXAMPLE/EX_01.pb"
  • Or comment loadPackage() and uncomment "EXAMPLE/EX_01.pb"

Note: At each new version, run again loadPackage()

Code:
; ******************************************************************************
; AUTHOR  : MicrodevWeb
; MODULE  : TreeView
; PROCESS : load package
; ******************************************************************************
EnableExplicit
Procedure loadPackage()
  Protected zipName.s = "PACKAGE.zip"
  If MessageRequester("Download Package","Do you agree to download the tree view package form github?",#PB_MessageRequester_YesNo) = #PB_MessageRequester_No
    End
  EndIf
  If Not InitNetwork()
    MessageRequester("Network error","Cannot connect to internet",#PB_MessageRequester_Error)
    End
  EndIf
  If Not ReceiveHTTPFile("https://github.com/microdevweb/VISUAL_BOARD/archive/master.zip",zipName)
    MessageRequester("Download error","Cannot download the package",#PB_MessageRequester_Error)
    End
  EndIf
  #PACKER = 0
  CreateDirectory("BOARD")
  CreateDirectory("BOARD/CLASSES")
  CreateDirectory("BOARD/CLASSES/IMG")
  CreateDirectory("EXAMPLE")
  CreateDirectory("EXAMPLE/IMG")
  UseZipPacker()
  OpenPack(#PACKER,zipName)
  If ExaminePack(#PACKER)
    While NextPackEntry(#PACKER)
      Protected dirName.s = StringField(PackEntryName(#PACKER),2,"/")
      If PackEntryType(#PACKER) = #PB_Packer_File
        Protected fileName.s = RemoveString(PackEntryName(#PACKER),"VISUAL_BOARD-master/")
        If Not UncompressPackFile(#PACKER,fileName)
          MessageRequester("Download error","Cannot unzip file "+fileName,#PB_MessageRequester_Error)
          End
        EndIf
      EndIf
    Wend
  EndIf
  ClosePack(#PACKER)
  DeleteFile(zipName)
EndProcedure

loadPackage()

; XIncludeFile "EXAMPLE/EX_01.pb"

_________________
Use Pb 5.60 lst and Windows 10

my mother-language isn't english, in advance excuse my mistakes.


Last edited by microdevweb on Sun Jul 14, 2019 9:24 am, edited 2 times in total.

Top
 Profile
Reply with quote
 Post subject: Re: Visual Board version 1.0 beta 2
PostPosted: Sat Jul 13, 2019 11:25 am
Offline
Enthusiast
Enthusiast
User avatar

Joined: Fri Jun 13, 2014 9:38 am
Posts: 130
Hello Guys,

The user help is available

_________________
Use Pb 5.60 lst and Windows 10

my mother-language isn't english, in advance excuse my mistakes.


Top
 Profile
Reply with quote
 Post subject: Re: Visual Board version 1.0 beta 2
PostPosted: Sat Jul 13, 2019 1:59 pm
Offline
PureBasic Team
PureBasic Team
User avatar

Joined: Fri Apr 25, 2003 6:14 pm
Posts: 1696
Location: Germany (Saxony, Deutscheinsiedel)
Not tested yet, but your project looks very interesting. Keep up the good work! :D

_________________
Bye,
...André
(PureBasicTeam::Docs & Support - PureArea.net | Order:: PureBasic | PureVisionXP)


Top
 Profile
Reply with quote
 Post subject: Re: Visual Board version 1.0 beta 2
PostPosted: Sat Jul 13, 2019 6:21 pm
Offline
Enthusiast
Enthusiast

Joined: Mon Apr 10, 2017 6:17 pm
Posts: 220
Location: Germany
It definately looks interesting and would be of good use in a project. I also keep watching it closely to make use of it once its mature and the license allows it.

Reminds me a lot on other visual programming languages that have been mostly forgotten.


Top
 Profile
Reply with quote
 Post subject: Re: Visual Board version 1.0 beta 2
PostPosted: Sun Jul 14, 2019 8:50 am
Offline
Enthusiast
Enthusiast
User avatar

Joined: Fri Jun 13, 2014 9:38 am
Posts: 130
@Bitblazer,

Don't worry for use it, its licence it's creative common.

The final destination for use it, is for a visual scripting designer.
